CUSTOMIZE ALL SIZES AND COLORS FOR YOUR NEED
We have the capacity and capability to manufacture keder with all custom modifications. Our team works closely with you to develop the perfect solution for your application.
HOW TO ORDER CUSTOM KEDER
1. Contact our sales team with your requirements
2. We review specifications and recommend solutions
3. Sample production for approval
4. Full production with QC tracking
5. Delivery to your location worldwide

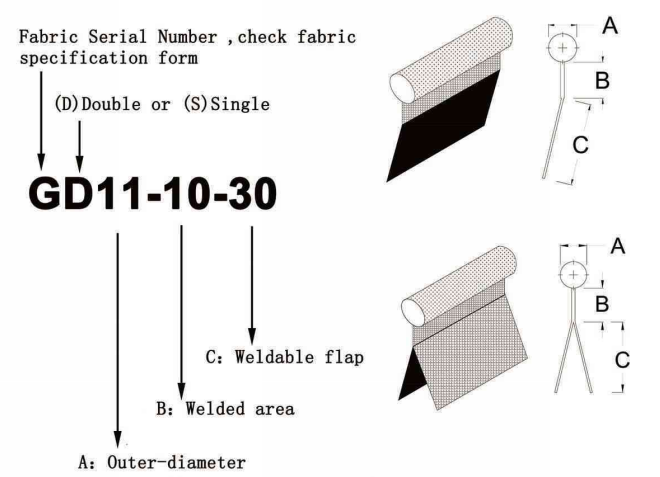

Keder Specification

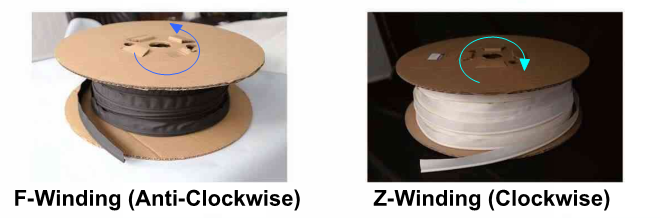

Winding Direction
Fabric Specification
| Type | A | D | E | C | G | F |
| Base Cloth | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester |
| Yarn |
1000x1000/ 23x23 |
1000x1000/ 30x30 |
1000x1000/ 30x30 |
1000x1000/ 30x30 |
1000x1000/ 30x30 |
1000x1000/ 30x30 |
| Weave | 1x1 | Panama2x2 | Panama2x2 | Panama2x2 | Panama2x2 | Panama2x2 |
| Base Cloth Weight | 460GSM | 650GSM | 650GSM | 750GSM | 750GSM | 750GSM |
| Tensile Strength(DIN 53354) |
3226N/5cm 2618N/5cm |
3880N/5cm 3300N/5cm |
4125N/5cm 3516N/5cm |
4264N/5cm 3629N/5cm |
4264N/5cm 3629N/5cm |
4066N/5cm 3354N/5cm |
| Tear Resistance(DIN 53363) |
395N/5cm 346N/5cm |
450N/5cm 600N/5cm |
560N/5cm 450N/5cm |
605N/5cm 501N/5cm |
605N/5cm 501N/5cm |
623N/5cm 477N/5cm |
| Adhesion(DIN 53357) | 116/105 | 140 | 141 | 150/148 | 151/145 | 156/150 |
| Finished Color | White | Black | White | White |
White fabric with Dark Gray Vinyl coated (Block out) |
Acrylic coated fabric with white vinyl coated |
| Thickness | 0.43mm | 0.56mm | 0.56mm | 0.69mm | 0.69mm | 0.68mm |
| Typical Application |
Banner Advertising |
Advertising | Advertising | Tents Structures | Tents Structures | Tents Structures |
| Type | K | L | N | P | T | M |
| Base Cloth | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester |
| Yarn |
1000x1000/ 30x30 |
1000x1000/ 30x30 |
1000x1000/ 30x30 |
1000x1000/ 30x30 |
1000x1000/ 30x30 |
150x150/ 22x14 |
| Weave | Panama2x2 | Panama2x2 | Panama2x2 | Panama2x2 | Panama2x2 | 1x1 |
| Base Cloth Weight | 750GSM | 750GSM | 750GSM | 900GSM | 900GSM | 400GSM |
|
Tensile Strength (DIN 53354) |
4066N/5cm 3354N/5cm |
4264N/5cm 3628N/5cm |
4264N/5cm 3628N/5cm |
5005N/5cm 6677N/5cm |
5005N/5cm 6677N/5cm |
935N/5cm 1423N/5cm |
|
Tear Resistance (DIN 53363) |
623N/5cm 477N/5cm |
610N/5cm 508N/5cm |
610N/5cm 508N/5cm |
764N/5cm 835N/5cm |
764N/5cm 835N/5cm |
38N/5cm 44N/5cm |
|
Adhesion (DIN 53357) |
156/150 | 151/145 | 151/145 | >160 | >160 | 210 |
| Finished Color |
Acrylic coated fabirc with dark gray vinyl coated, block out |
Gray fabirc with white vinyl coated, block out |
Gold fabirc with gold vinyl coated, block out |
White fabric with gray vinyl coated, block out |
White fabric with white vinyl coated, block out |
Black,White, Beige(UV Protection Up to 1000 Hours) |
| Thickness | 0.68mm | 0.7mm | 0.7mm | 0.8mm | 0.8mm | 0.4mm |
| Typical Application | Tents Structures | Tents Structures | Tents Structures | Tents Structures | Tents Structures | Curtain |
